Cabinets, Racks & Other Structures

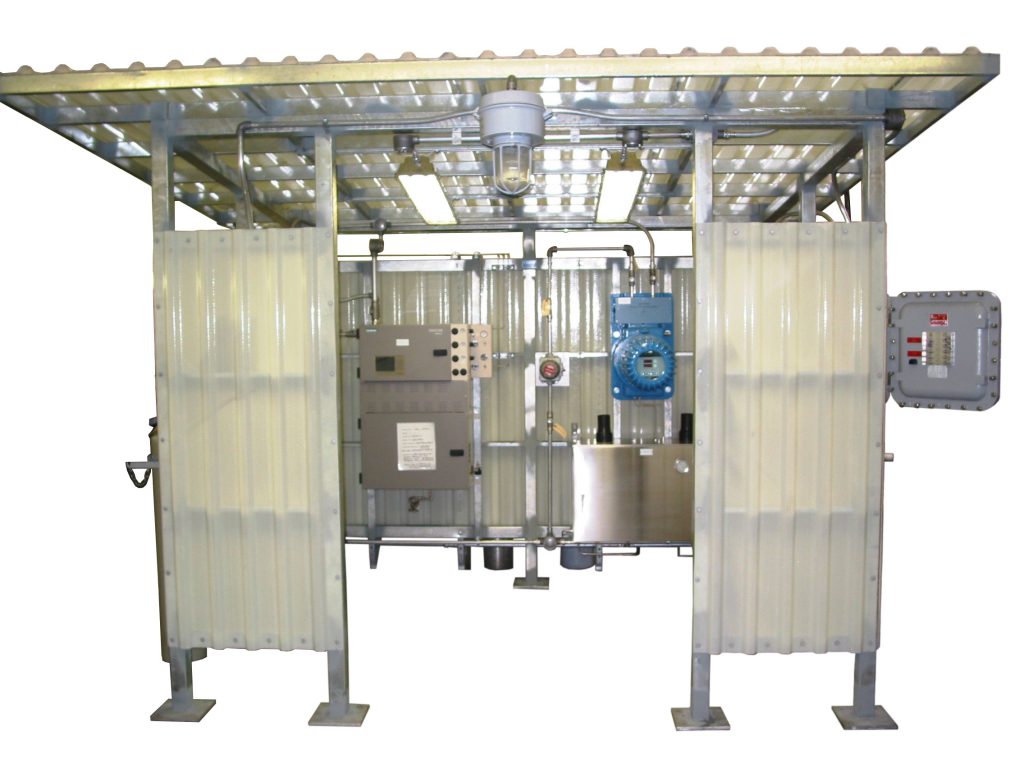

Don't have the space for an entire shelter at your facility? No problem. We design and build custom cabinets, racks, bus stops, and other structures to accommodate smaller spaces and they are designed to fit within the existing layout of your facility. These structures are built with the same high quality of construction and are subjected to the same stringent quality assurance checks as our shelters.

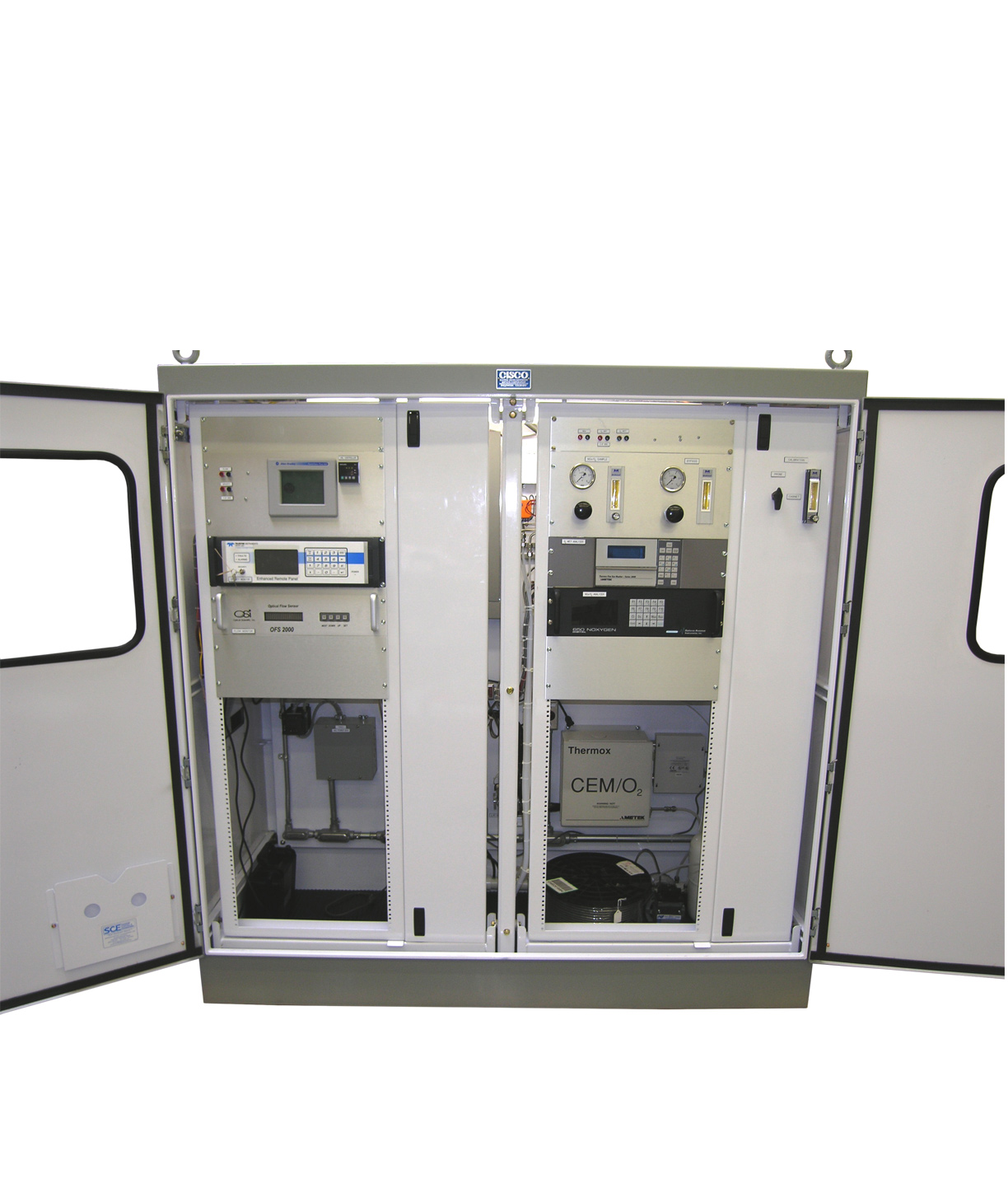

CiSCO can put a CEMS into a fully enclosed NEMA 3R (or 4X stainless steel) cabinet with single or dual access (front only or front and rear). We typically use 6-foot-wide two-bay cabinets that are 6 feet tall with the analyzers in one bay and the sample handling equipment in the second. Windows, with UV protection if outdoors, can be added to the front to see analyzer readings and pressure and flow settings without opening the cabinet. It is nothing less than a full CiSCO CEMS with a smaller footprint.

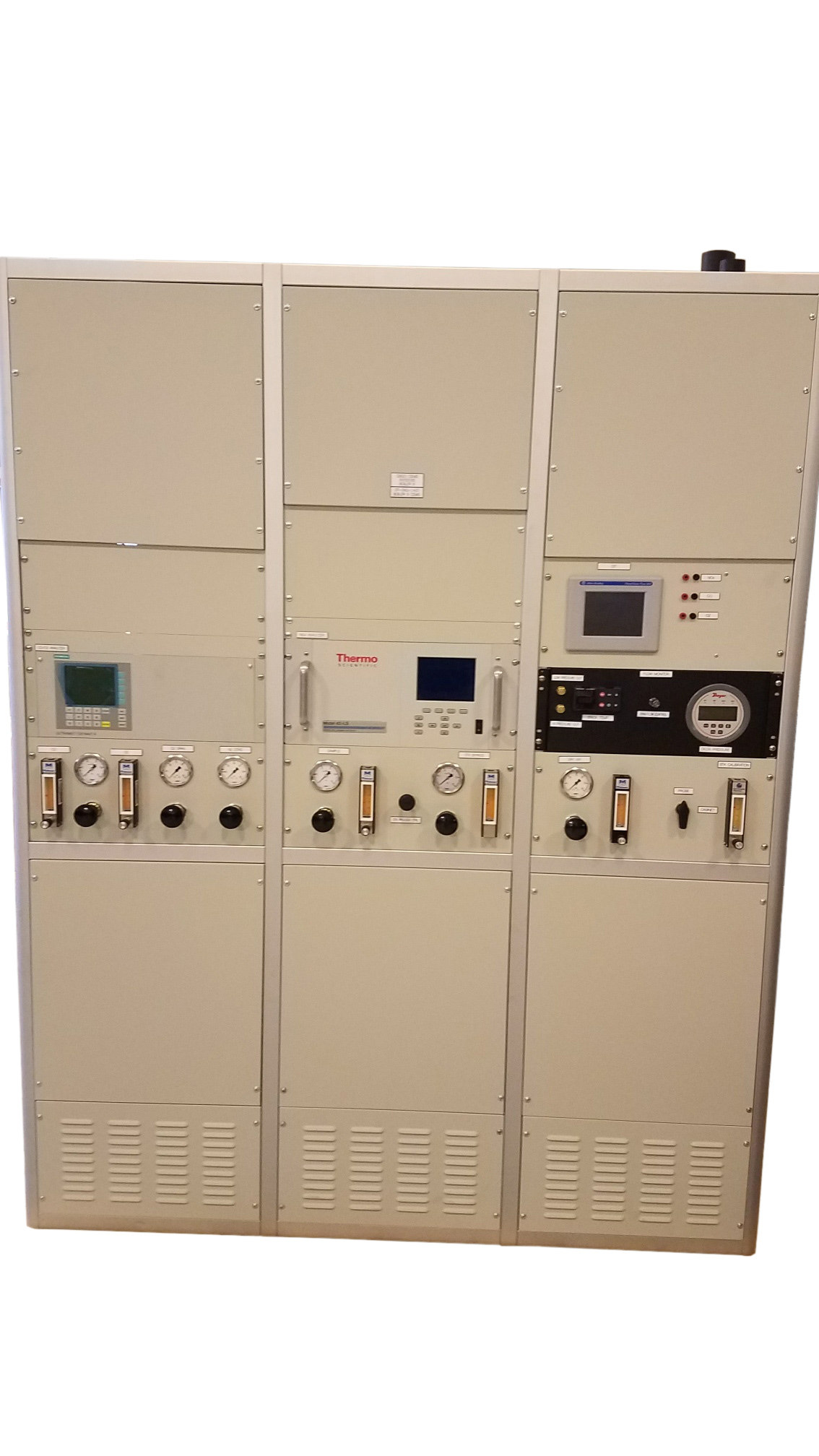

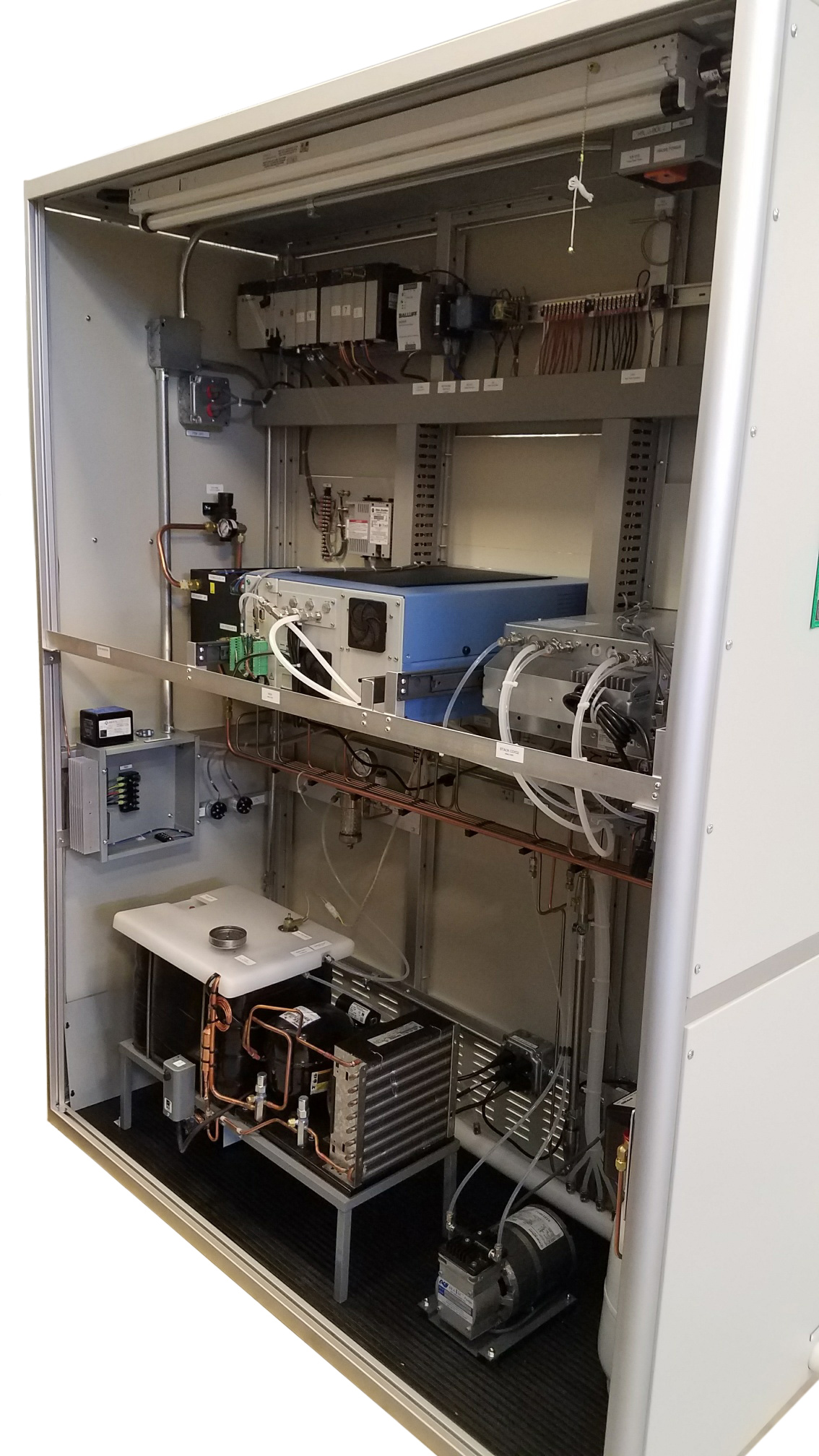

If you have an existing shelter or other suitable location for a CEMS it can also be supplied in a NEMA 12 open rack. Our open design racks allow easy access to the front for reading pressures, flows, and analyzer values, and to the rear of the rack for maintenance and troubleshooting. If space is an issue, we can provide a 19-inch rack combined with one or more wall-mounted panels to house the sample handling and electrical systems.
Each design is capable of housing cylinders up to 12 inches in diameter and has safety chains/straps to securely hold each cylinder in place. Each cylinder position has a designated pressure regulator, hose, and CGA fitting with a built-in check valve for the cylinder. All of the regulators are mounted to the shelter as well, no need to juggle them around when switching a cylinder.
